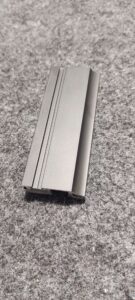

Venus Profie

Description:
Vinus type Profile is used for Sliding Wardrobe, Walk In Wardrobe, Hall Partition, It is Used for Inline Wardrobes and Top line Wardrobes, It is sleek profile etc., There are also a variety of glass styles to choose from for the sliding doors, which include lacquering glass, partly frosted, shaded glass, mirror finish, Digital print on glass.,etc

Material:
Profile is Made up of Aluminium Anodised Coated Material, Top and Bottom Track is made with Aluminium. It work with Soft closing.

Benefits:

• Easy to access and ease of use
• It Saves your room space
• Enhance elegance of the room
• User friendly usability
• Long Durable and More effective with Soft closing

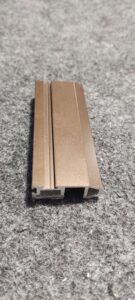

Available Colours:

Available gage/size:

Installation Process:

Fit end panels or strike plates if using those
End Panels – Cut as required to fit exactly between floor and ceiling and scribe over skirting board. Fix to back wall, floor and ceiling with the fixing blocks and screws provided. Ensure ceiling fixing block is approx. 100mm from front edge of end panel to clear top track. Strike plate or end panel scribed panel, showing top around skirting track & fixing Strike Plates – Cut to fit exact height from floor to ceiling and cut out skirting as required, or cut to fit from top of skirting as shown in the illustrations. Fix to wall with the screws and plugs provided.

STEP 2 – Trim the Tracks

• Use the ply support supplied for the underside of the bottom track.
• Fix top track to ceiling and bottom track to floor.
•  Front edge of top track should be flush with front of opening.
• Front edge of bottom track should be set back 9mm from the front edge of the top track.

STEP 3 – Install the doors

•  Install doors first. Raise doors and insert guides into top track.
•  Sit the bottom of the door on to the bottom track so that the wheels sit onto the raised section.
•  You are now able to move the door.

STEP 4 – Adjust the doors
Turning the large screw on the wheel assembly will raise or lower the door, turn clockwise to raise the door and anticlockwise to lower the door.
